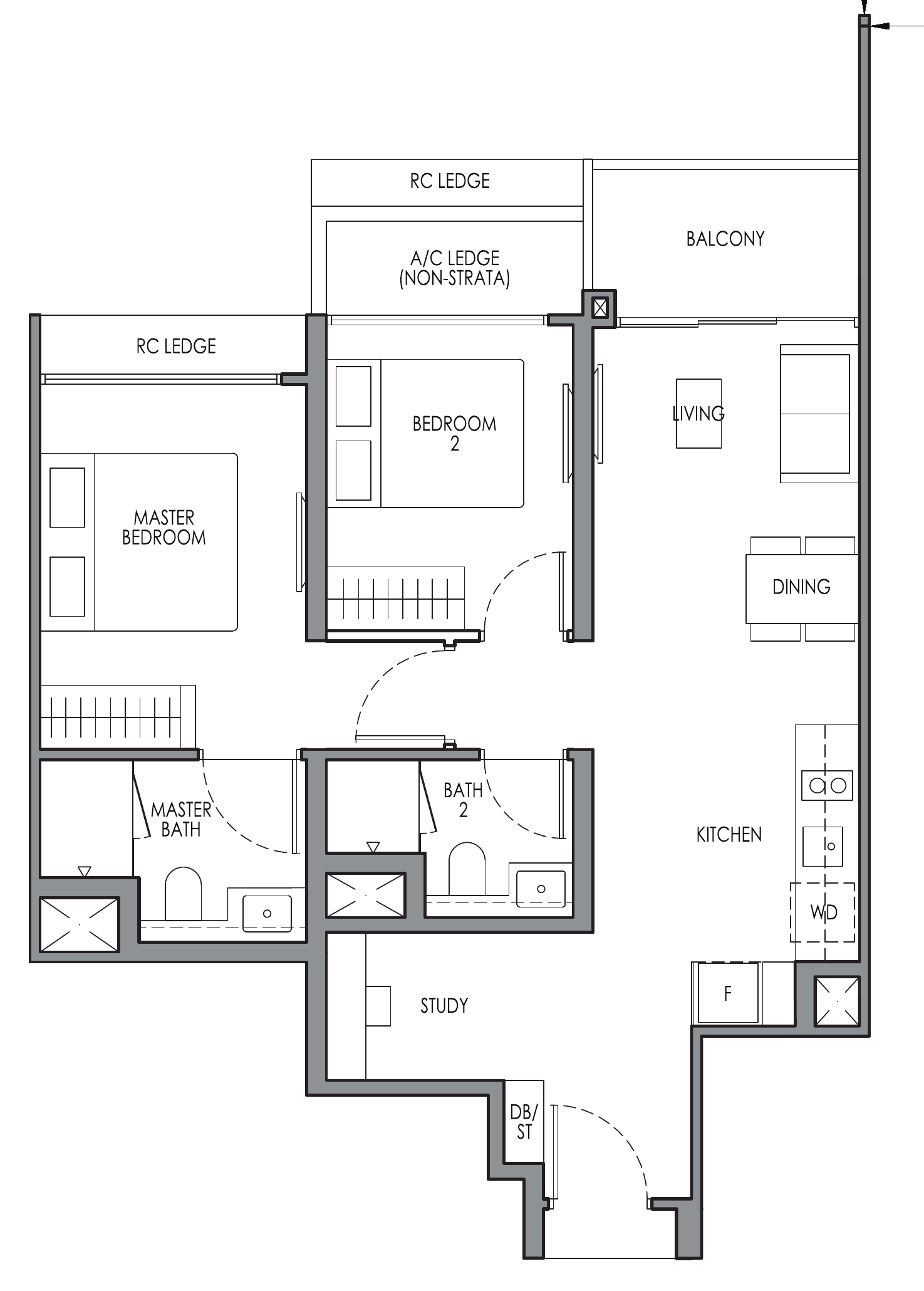

Lucerne Grand B3S floor plan
2-Bedroom + Study · 2 bedrooms + study · 2 bathrooms · 710 sq ft (66 m²) · 62 units
Plan © CDL, from the sales brochure.
Room sizes
| Room | Clear size (width × depth) |
|---|---|
| Master Bedroom | 2.70 × 3.70 m≈ 10.0 m² (107 sq ft)wardrobe 1.55 m |
| Master Bath | 2.70 × 1.85 m≈ 5.0 m² (54 sq ft) |
| Bedroom 2 | 2.50 × 3.10 m≈ 7.7 m² (83 sq ft)wardrobe 1.40 m |
| Living | 2.70 × 2.10 m≈ 5.7 m² (62 sq ft)TV wall 3.15 m |
| Balcony | 2.70 × 1.50 m≈ 4.0 m² (44 sq ft) |
| Bath 2 | 2.50 × 1.60 m≈ 4.0 m² (43 sq ft) |
| Study | 2.20 × 1.50 m≈ 3.3 m² (35 sq ft) |
| Dining | 1.90 m |
| Kitchen | 1.70 × 3.05 m≈ 5.2 m² (56 sq ft) |
| Foyer | 1.50 × 1.20 m≈ 1.8 m² (19 sq ft) |
Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 20 Oct 2026. How we measure.
