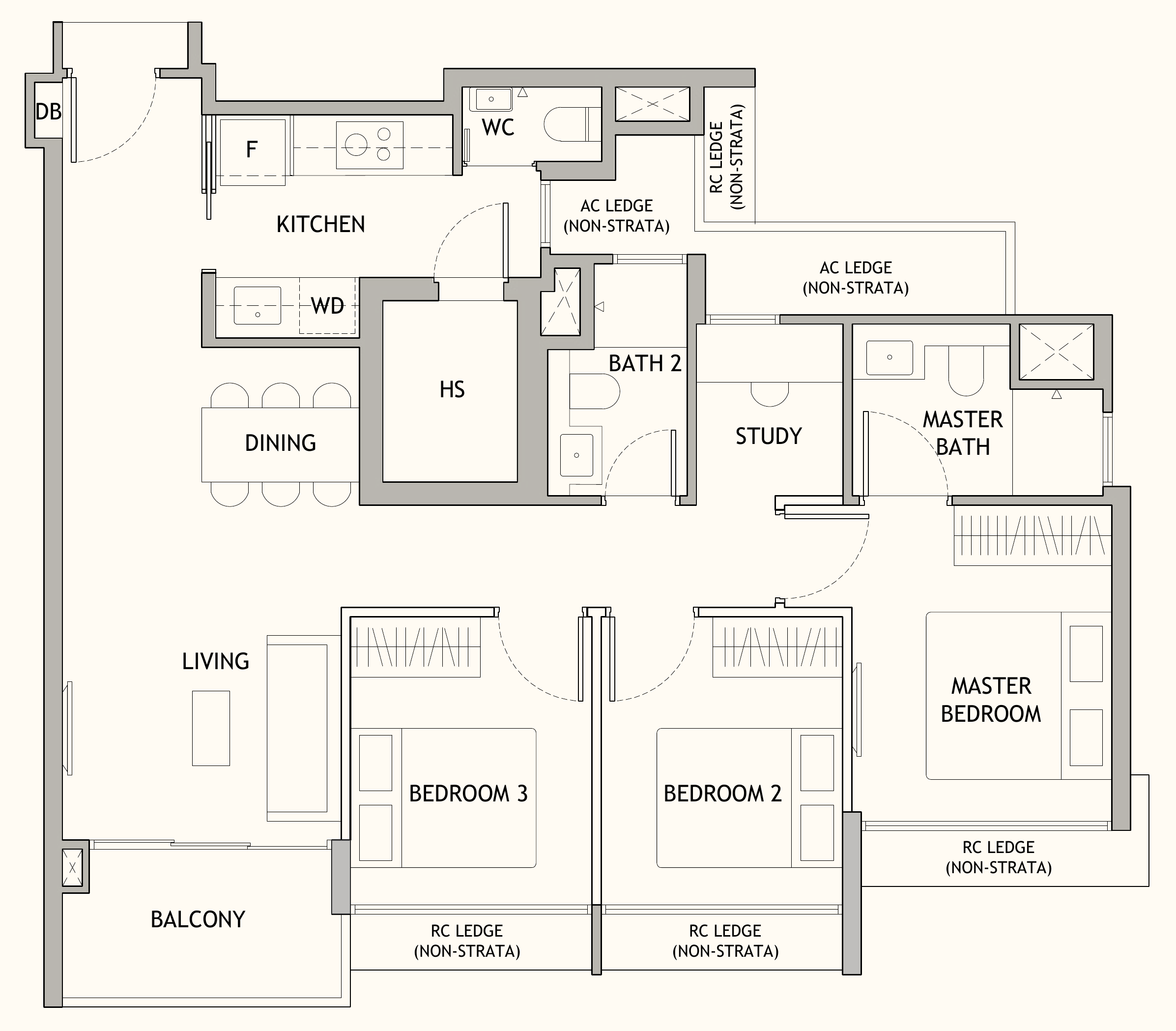

Dunearn House CS1 floor plan
3-Bedroom + Study · 3 bedrooms + study · 3 bathrooms · 947 sq ft (88 m²) · 10 units
Plan © Frasers Property, CSC Land Group, Sekisui House, from the sales brochure.
Room sizes
| Room | Clear size (width × depth) |
|---|---|
| Bedroom 3 | 2.60 × 3.10 m≈ 8.0 m² (86 sq ft) |
| Bedroom 2 | 2.60 × 3.10 m≈ 8.0 m² (86 sq ft) |
| Master Bedroom | 2.80 × 3.40 m≈ 9.5 m² (102 sq ft) |
| Study | 1.60 × 1.85 m≈ 2.9 m² (31 sq ft) |
| Master Bath | 2.70 × 1.85 m≈ 5.0 m² (53 sq ft) |
| Bath 2 | 1.50 × 2.50 m≈ 3.7 m² (40 sq ft) |
| WC | 1.50 × 0.80 m≈ 1.2 m² (13 sq ft) |
| Household Shelter | 1.45 × 1.95 m≈ 2.8 m² (30 sq ft) |
| Kitchen | 2.55 × 2.40 m≈ 6.1 m² (66 sq ft) |
| Dining | 3.20 × 2.80 m≈ 8.9 m² (96 sq ft) |
| Living | 3.00 × 2.50 m≈ 7.5 m² (81 sq ft)TV wall 2.50 m |
| Balcony | 3.00 × 1.60 m≈ 4.8 m² (51 sq ft) |
| Foyer | 1.50 × 2.90 m≈ 4.3 m² (47 sq ft) |
Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 20 Oct 2026. How we measure.
