Dunearn House · D2

4-Bedroom

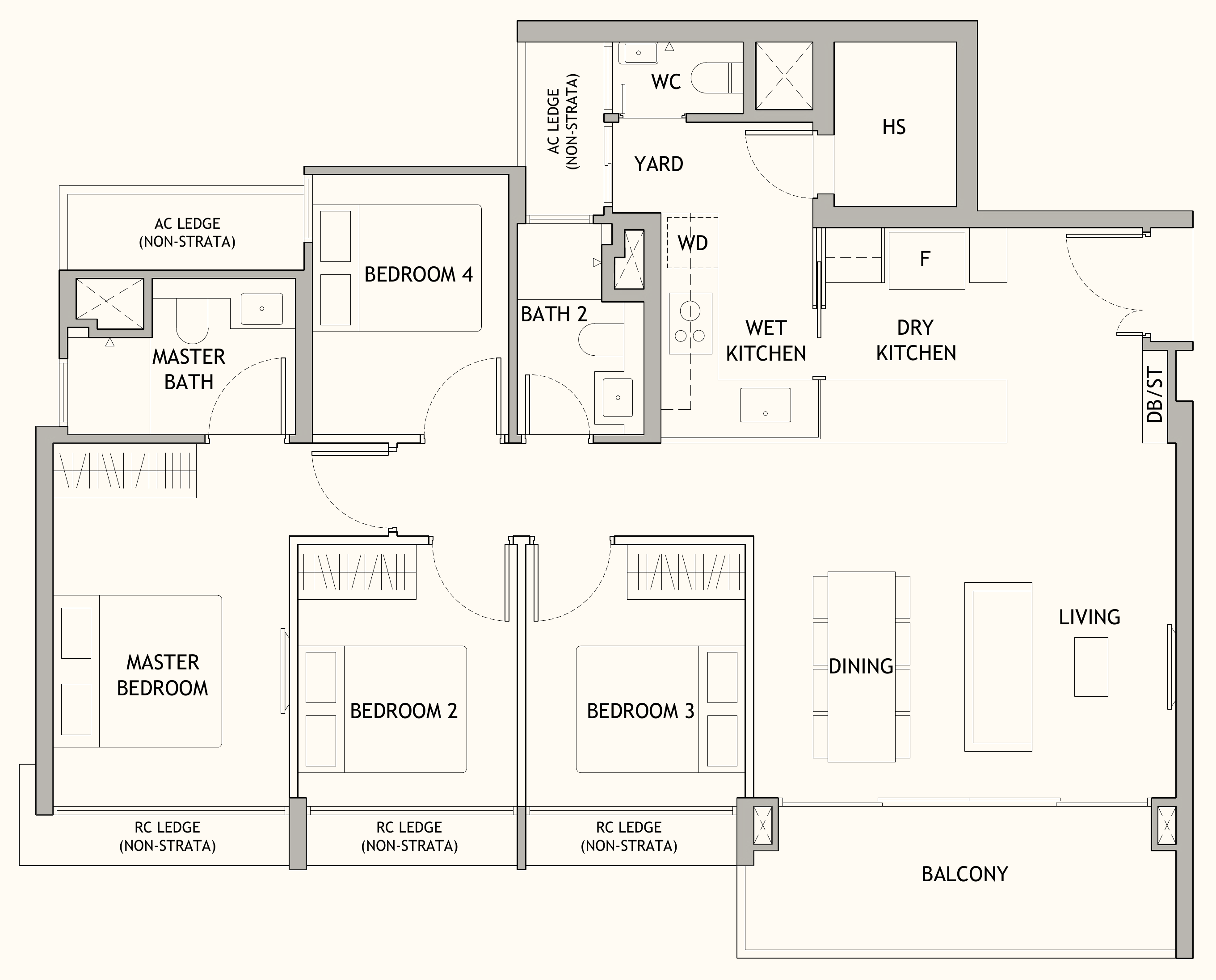

Dunearn House D2 floor plan

4 bedrooms · 3 bathrooms · 1,184 sq ft (110 m²) · 18 units

Dunearn House D2 floor plan, 4 bedrooms

Plan © Frasers Property, CSC Land Group, Sekisui House, from the sales brochure.

Room sizes

RoomClear size (width × depth)
Master Bedroom2.80 × 4.30 m≈ 12.0 m² (129 sq ft)
Bedroom 22.60 × 3.10 m≈ 8.0 m² (86 sq ft)
Bedroom 32.60 × 3.10 m≈ 8.0 m² (86 sq ft)
Bedroom 42.30 × 3.05 m≈ 7.1 m² (77 sq ft)
Master Bath2.70 × 1.85 m≈ 5.0 m² (53 sq ft)
Bath 21.50 × 2.50 m≈ 3.7 m² (40 sq ft)
WC1.55 × 0.85 m≈ 1.3 m² (14 sq ft)
Yard2.35 m
Household Shelter1.45 × 1.95 m≈ 2.8 m² (30 sq ft)
Living5.00 × 4.20 m≈ 20.9 m² (225 sq ft)TV wall 4.20 m
Yard + Wet Kitchen3.70 m
Wet Kitchen1.85 m
Dry Kitchen3.80 × 2.55 m≈ 9.7 m² (104 sq ft)
Dining—wall 3.10 m
Balcony5.10 × 1.70 m≈ 8.6 m² (93 sq ft)

Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 20 Oct 2026. How we measure.
