The Serra Residences · D3

4-Bedroom + Study

The Serra Residences D3 floor plan

4-Bedroom + Study · 4 bedrooms + study · 4 bathrooms · 1,335 sq ft (124 m²) · 10 units

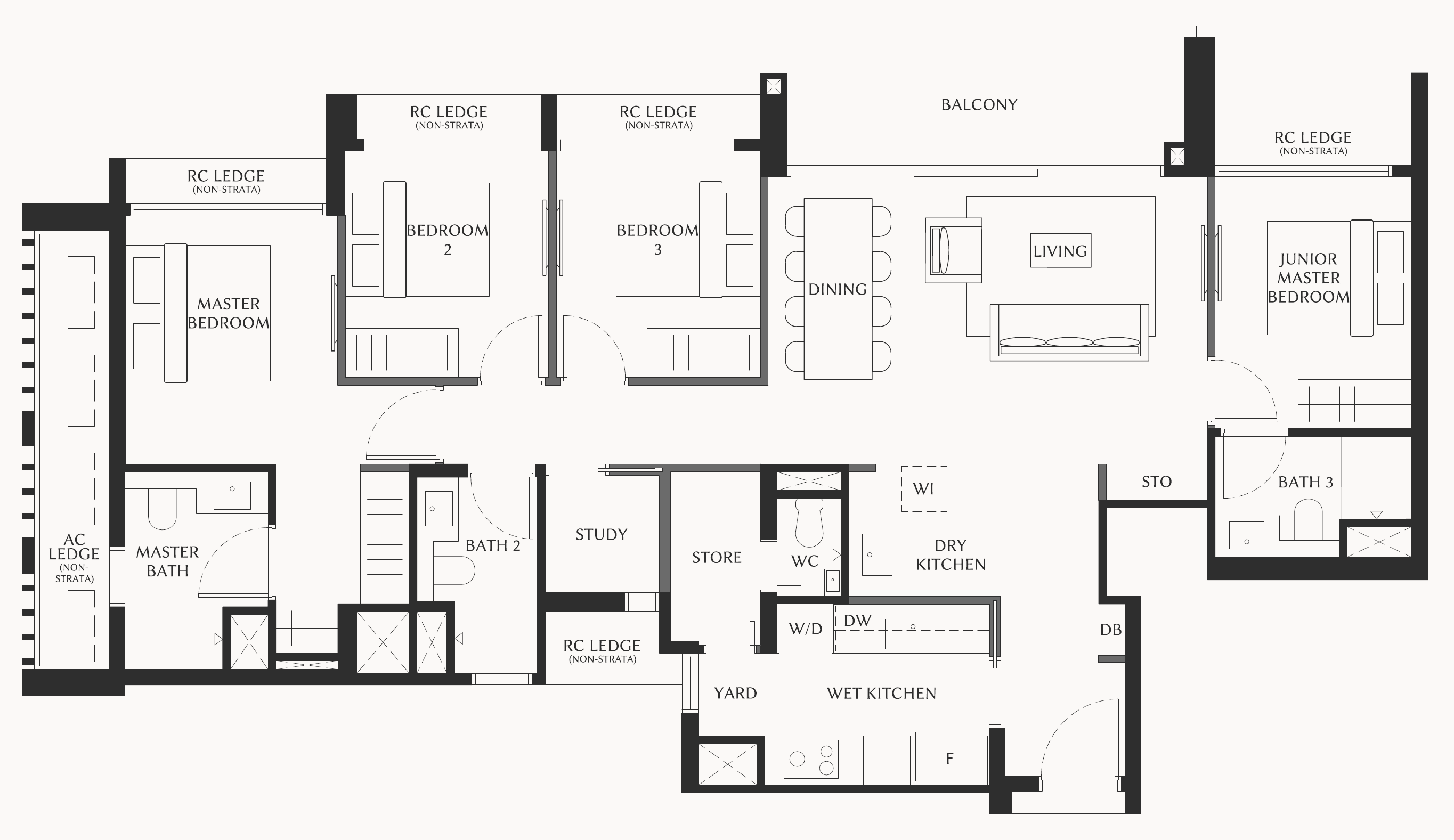

The Serra Residences D3 floor plan, 4 bedrooms + study

Plan © Far East Organization, from the sales brochure.

Room sizes

RoomClear size (width × depth)
Master Bedroom2.80 × 3.30 m≈ 9.3 m² (100 sq ft)
Bedroom 22.70 × 3.00 m≈ 8.1 m² (87 sq ft)wardrobe 1.50 m
Bedroom 32.70 × 3.00 m≈ 8.1 m² (87 sq ft)wardrobe 1.50 m
Junior Master Bedroom2.60 × 3.35 m≈ 8.7 m² (94 sq ft)wardrobe 1.50 m
Bath 32.60 × 1.60 m≈ 4.2 m² (45 sq ft)
Living5.80 × 3.85 m≈ 22.5 m² (242 sq ft)TV wall 2.40 m
Dining3.85 mwall 2.75 m
Dry Kitchen3.30 × 1.65 m≈ 5.5 m² (59 sq ft)
Living + Dry Kitchen5.60 m
Balcony5.25 × 1.70 m≈ 9.0 m² (97 sq ft)
Master Bath1.90 × 2.65 m≈ 5.0 m² (54 sq ft)
Bath 22.60 × 1.60 m≈ 4.2 m² (45 sq ft)
WC0.85 × 1.30 m≈ 1.1 m² (12 sq ft)
Study1.50 × 1.55 m≈ 2.3 m² (25 sq ft)
Store1.20 × 2.25 m≈ 2.7 m² (29 sq ft)
Yard + Kitchen3.85 m
Kitchen2.40 m
Foyer1.60 m
Walk-in Wardrobe1.75 × 1.85 m≈ 3.3 m² (35 sq ft)

Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 23 Oct 2026.
