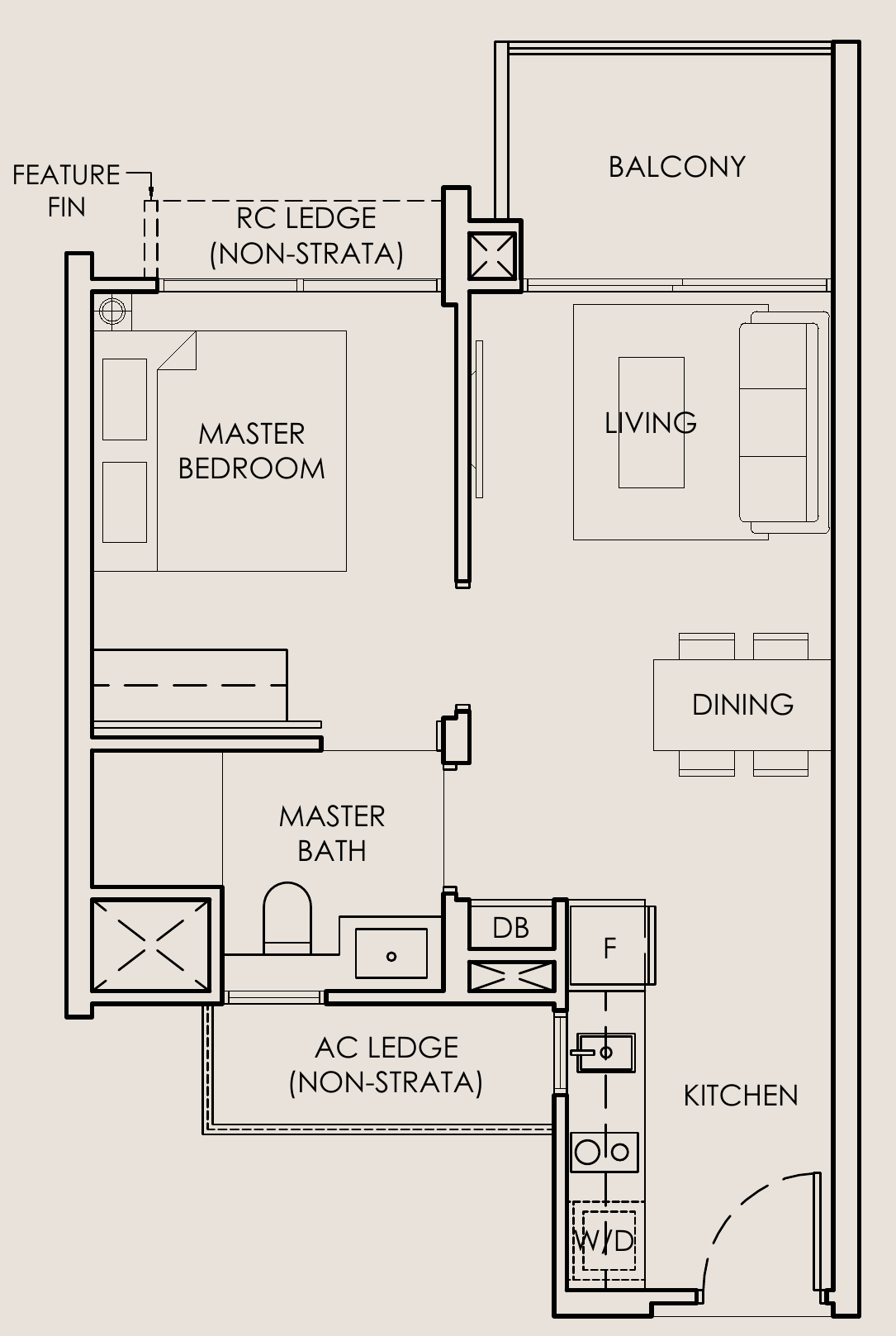

The Sen A1 floor plan
1 Bedroom · 1 bedroom · 1 bathroom · 452 sq ft (42 m²) · 10 units
Plan © Sustained Land, Greatview Development, from the sales brochure.
Highlights
- Spacious master bedroom (9.6 m²)
- Large kitchen (6.2 m²)
Sizes compared with 1-bedroom layouts in every condo on Property Ruler.
Room sizes
| Room | Clear size (width × depth) |
|---|---|
| Master Bedroom | 2.80 × 3.45 m≈ 9.6 m² (104 sq ft)wardrobe 1.50 m |
| Master Bath | 2.70 × 1.85 m≈ 5.0 m² (54 sq ft) |
| Living | 2.80 × 2.25 m≈ 6.3 m² (67 sq ft)TV wall 2.25 m |
| Kitchen | 2.05 × 3.00 m≈ 6.2 m² (66 sq ft) |
| Balcony | 2.50 × 1.75 m≈ 4.3 m² (47 sq ft) |
| Dining | 2.45 mwall 2.45 m |
Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 26 Oct 2026.
