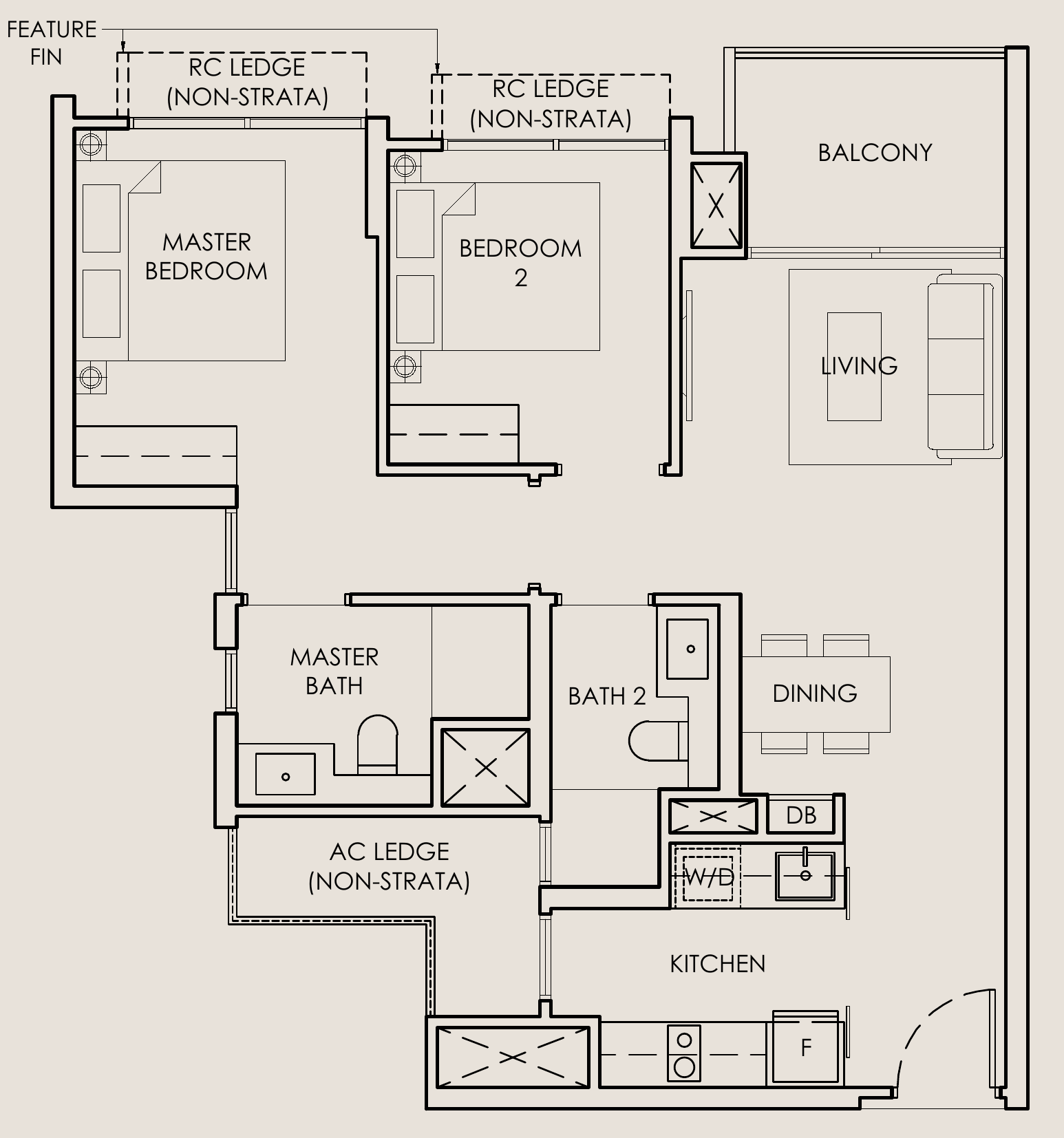

The Sen B1 floor plan
2 Bedroom · 2 bedrooms · 2 bathrooms · 678 sq ft (63 m²) · 50 units
Plan © Sustained Land, Greatview Development, from the sales brochure.
Highlights
- Large kitchen (9.5 m²)
Sizes compared with 2-bedroom layouts in every condo on Property Ruler.
Room sizes
| Room | Clear size (width × depth) |
|---|---|
| Master Bedroom | 2.65 × 3.30 m≈ 8.8 m² (94 sq ft) |
| Bedroom 2 | 2.60 × 2.90 m≈ 7.6 m² (81 sq ft) |
| Living | 3.00 × 2.00 m≈ 6.0 m² (65 sq ft)TV wall 2.00 m |
| Dining | 2.45 × 2.95 m≈ 7.2 m² (78 sq ft)wall 1.85 m |
| Bath 2 | 1.55 × 2.60 m≈ 4.0 m² (44 sq ft) |
| Master Bath | 2.70 × 1.85 m≈ 5.0 m² (54 sq ft) |
| Balcony | 2.50 × 1.75 m≈ 4.4 m² (47 sq ft) |
| Kitchen | 2.25 × 4.20 m≈ 9.5 m² (102 sq ft) |
Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 26 Oct 2026.
Other layouts in The Sen
- The Sen A1: 1 bedroom, 452 sq ft (42 m²)
- The Sen B2: 2 bedrooms, 678 sq ft (63 m²)
- The Sen B3: 2 bedrooms, 732 sq ft (68 m²)
- The Sen B4: 2 bedrooms + study, 764 sq ft (71 m²)
- The Sen B4A: 2 bedrooms + study, 775 sq ft (72 m²)
- The Sen C1: 3 bedrooms, 872 sq ft (81 m²)
- The Sen C2: 3 bedrooms, 936 sq ft (87 m²)
- The Sen C3: 3 bedrooms, 1,109 sq ft (103 m²)
- The Sen C4: 3 bedrooms + study, 1,259 sq ft (117 m²)
- The Sen D1: 4 bedrooms + study, 1,453 sq ft (135 m²)
- The Sen D1A: 4 bedrooms + study, 1,453 sq ft (135 m²)
