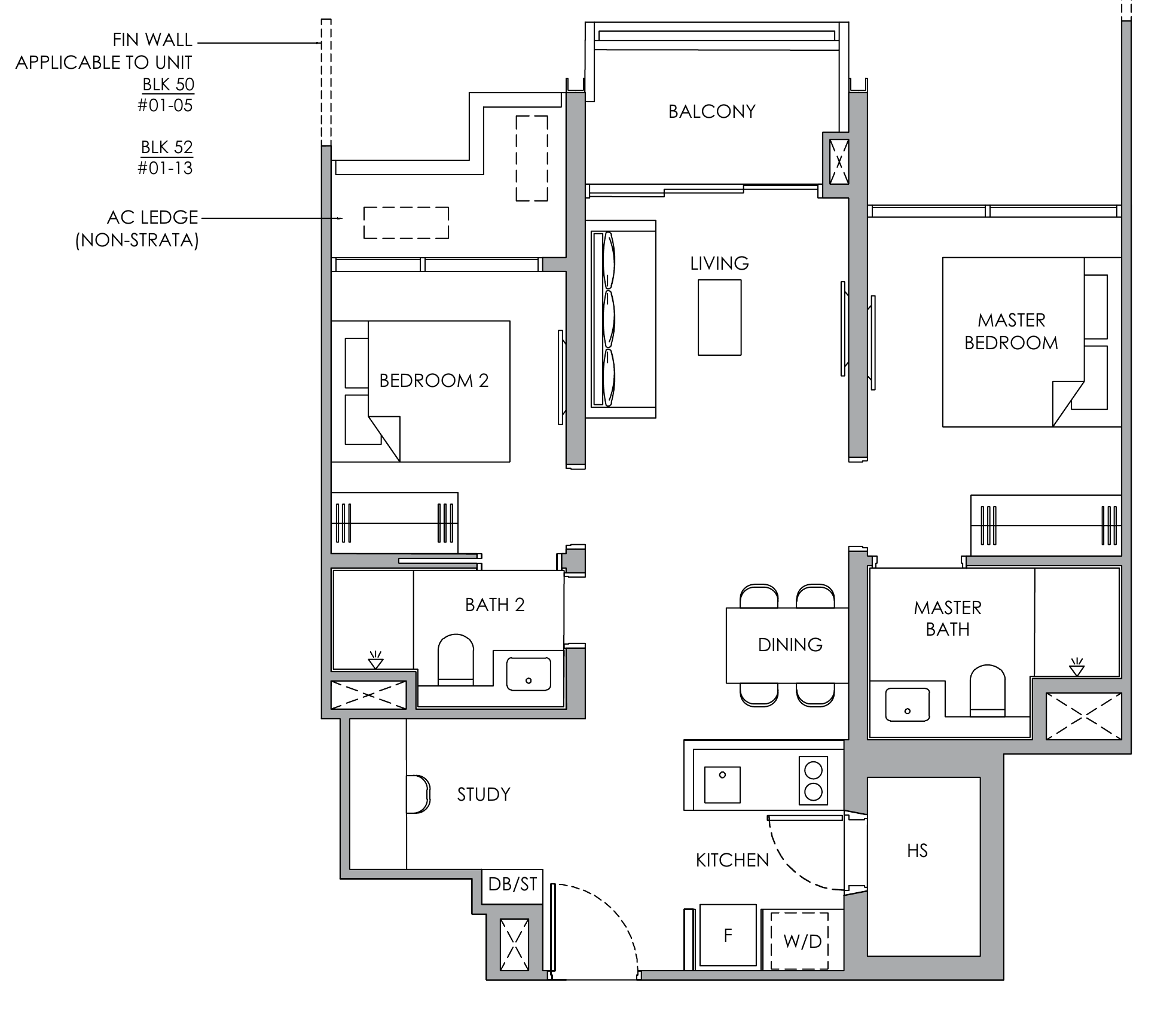

Narra Residences B7H-S floor plan
2-Bedroom with Household Shelter + Study · 2 bedrooms + study · 2 bathrooms · 721 sq ft (67 m²) · 24 units
Plan © Santarli, Apex Asia, Soon Li Heng, Kay Lim, from the sales brochure.
Room sizes
| Room | Clear size (width × depth) |
|---|---|
| Bedroom 2 | 2.50 × 3.00 m≈ 7.5 m² (81 sq ft)wardrobe 1.35 m |
| Master Bedroom | 2.70 × 3.60 m≈ 9.7 m² (105 sq ft)wardrobe 1.60 m |
| Master Bath | 2.70 × 1.85 m≈ 5.0 m² (54 sq ft) |
| Living | 2.80 × 2.75 m≈ 7.8 m² (83 sq ft)TV wall 2.75 m |
| Balcony | 2.80 × 1.40 m≈ 4.0 m² (43 sq ft) |
| Household Shelter | 1.20 × 1.90 m≈ 2.3 m² (25 sq ft) |
| Bath 2 | 2.50 × 1.50 m≈ 3.7 m² (40 sq ft) |
| Study | 1.40 × 1.60 m≈ 2.2 m² (24 sq ft) |
| Dining | 3.00 mwall 2.05 m |
| Kitchen | 1.70 × 2.45 m≈ 4.2 m² (45 sq ft) |
| Foyer | 1.50 × 1.05 m≈ 1.6 m² (17 sq ft) |
Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 22 Oct 2026.
