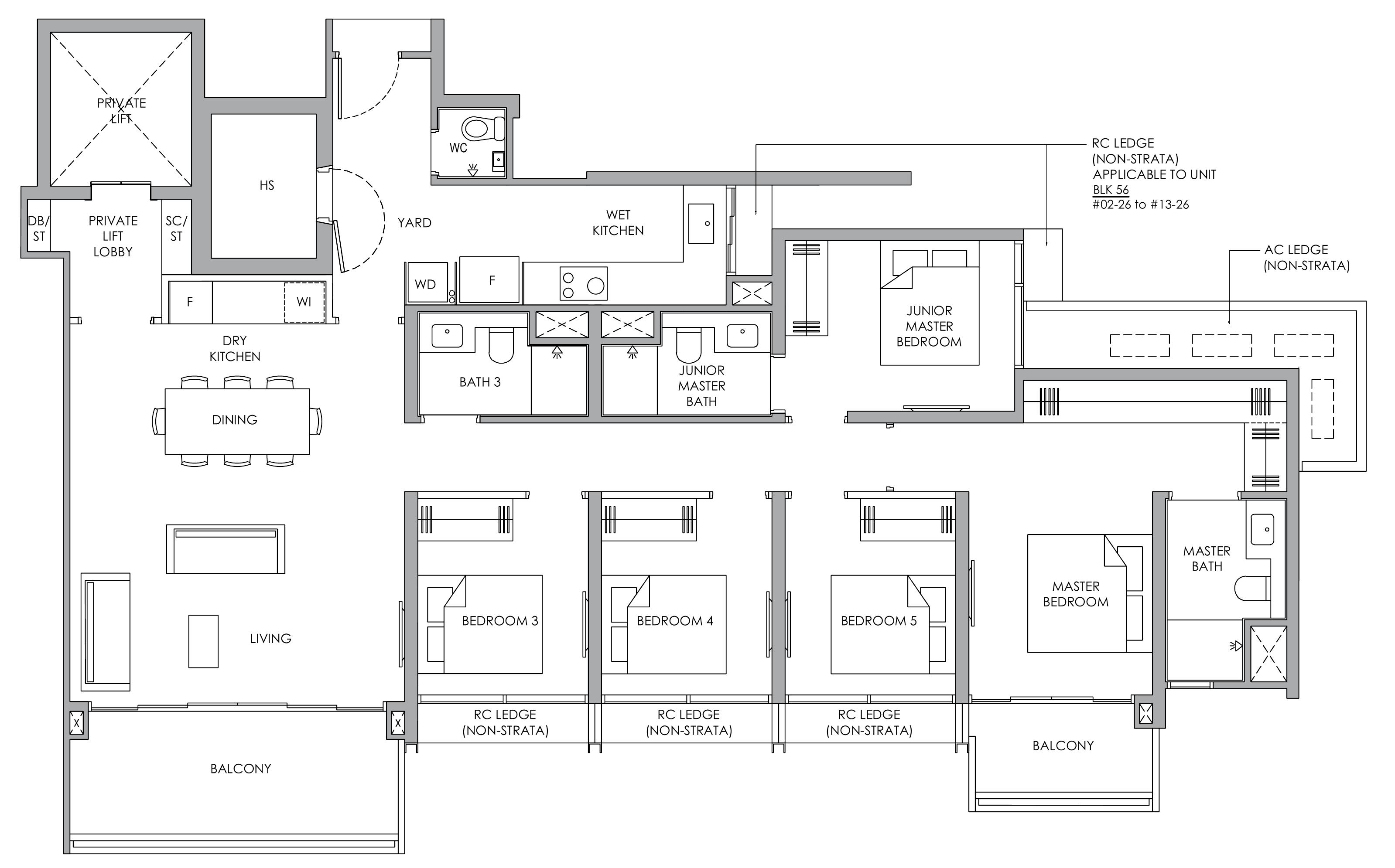

Narra Residences E1 floor plan
5-Bedroom with Private Lift · 5 bedrooms · 4 bathrooms · 1,658 sq ft (154 m²) · 13 units
Plan © Santarli, Apex Asia, Soon Li Heng, Kay Lim, from the sales brochure.
Room sizes
| Room | Clear size (width × depth) |
|---|---|
| Bedroom 3 | 2.60 × 3.00 m≈ 7.8 m² (84 sq ft)wardrobe 1.45 m |
| Bath 3 | 2.60 × 1.60 m≈ 4.2 m² (45 sq ft) |
| Bedroom 4 | 2.60 × 3.00 m≈ 7.8 m² (84 sq ft)wardrobe 1.45 m |
| Bedroom 5 | 2.60 × 3.00 m≈ 7.8 m² (84 sq ft)wardrobe 1.45 m |
| Junior Master Bath | 2.60 × 1.60 m≈ 4.2 m² (45 sq ft) |
| Master Bedroom | 2.80 × 4.85 m≈ 13.5 m² (146 sq ft)wardrobe 4.00 m |
| Master Bath | 1.85 × 2.75 m≈ 5.1 m² (55 sq ft) |
| Junior Master Bedroom | 2.60 × 3.50 m≈ 9.1 m² (98 sq ft)wardrobe 1.45 m |
| WC | 1.00 × 1.10 m≈ 1.1 m² (12 sq ft) |
| Household Shelter | 1.60 × 2.20 m≈ 3.5 m² (38 sq ft) |
| Living | 5.10 × 3.20 m≈ 16.5 m² (177 sq ft)TV wall 3.20 m |
| Private Lift Lobby | 1.40 × 1.80 m≈ 2.5 m² (27 sq ft) |
| Yard + Kitchen | 6.00 m |
| Kitchen | 1.85 m |
| Yard | 1.50 × 3.95 m≈ 5.9 m² (64 sq ft) |
| Dry Kitchen | 2.60 m |
| Dining | 2.55 mwall 2.55 m |
| Balcony 1 | 5.00 × 1.85 m≈ 9.4 m² (101 sq ft) |
| Balcony 2 | 2.70 × 1.35 m≈ 3.7 m² (39 sq ft) |
Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 22 Oct 2026.
