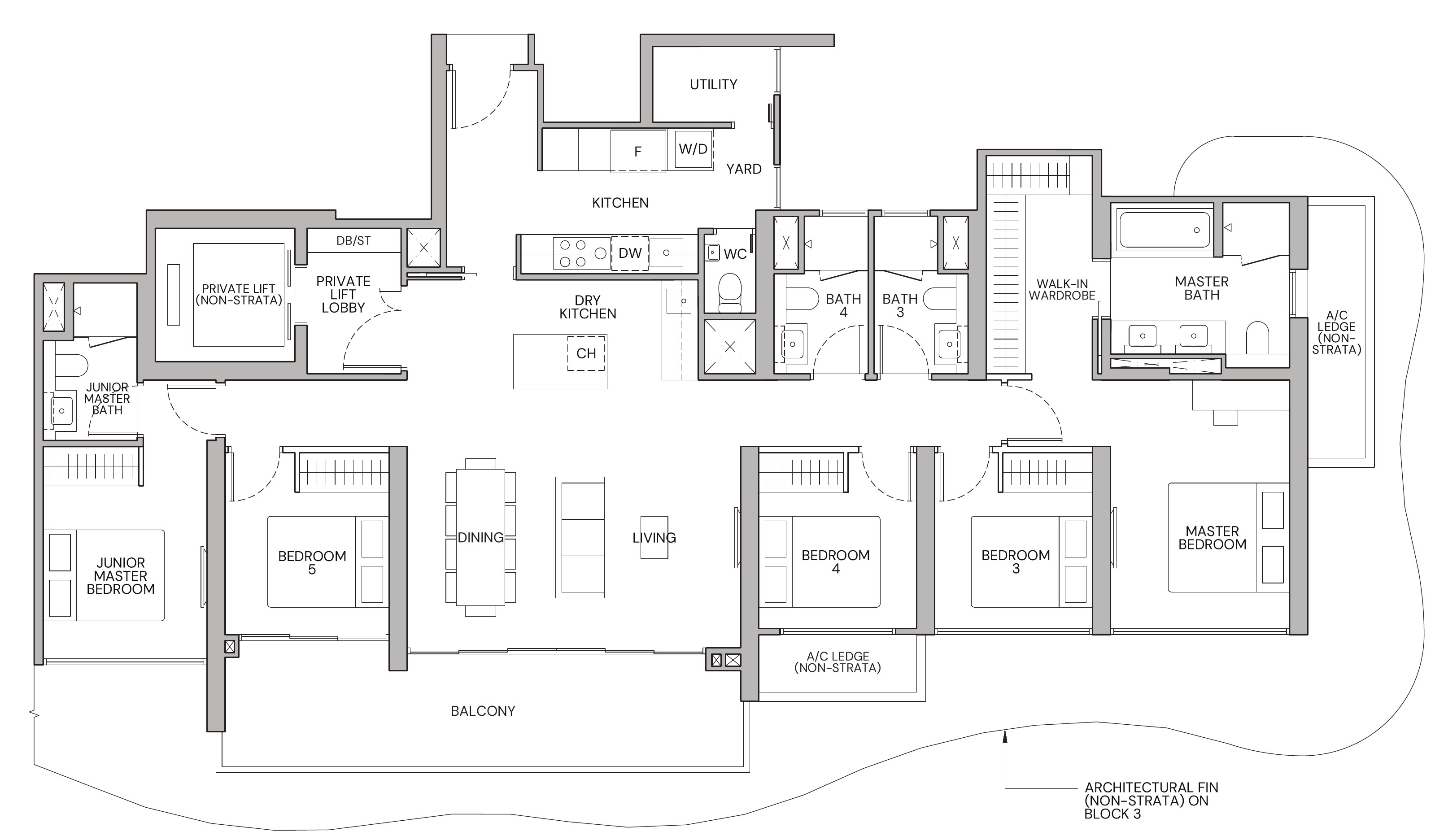

Zyon Grand ES1 floor plan
5-Bedroom Supreme · 5 bedrooms · 5 bathrooms · 1,819 sq ft (169 m²) · 18 units
Plan © CDL, Mitsui Fudosan, from the sales brochure.
Room sizes
| Room | Clear size (width × depth) |
|---|---|
| Junior Master Bedroom | 2.70 × 3.50 m≈ 9.4 m² (101 sq ft)wardrobe 1.65 m |
| Junior Master Bath | 1.55 × 2.60 m≈ 4.0 m² (43 sq ft) |
| Bedroom 5 | 2.70 × 3.00 m≈ 8.1 m² (87 sq ft)wardrobe 1.55 m |
| Private Lift Lobby | 1.75 × 2.00 m≈ 3.5 m² (38 sq ft) |
| Living | 5.50 × 3.35 m≈ 18.4 m² (198 sq ft)TV wall 3.35 m |
| Dining | —wall 3.40 m |
| Balcony | 8.55 × 1.85 m≈ 15.8 m² (170 sq ft) |
| Yard + Kitchen | 3.80 m |
| Kitchen | 2.50 m |
| Dry Kitchen | 4.80 × 2.75 m≈ 13.1 m² (142 sq ft) |
| WC | 0.85 × 1.40 m≈ 1.2 m² (13 sq ft) |
| Utility | 2.00 × 1.25 m≈ 2.5 m² (27 sq ft) |
| Bath 4 | 1.55 × 2.60 m≈ 4.0 m² (43 sq ft) |
| Bath 3 | 1.55 × 2.60 m≈ 4.0 m² (43 sq ft) |
| Bedroom 4 | 2.60 × 2.90 m≈ 7.5 m² (81 sq ft)wardrobe 1.45 m |
| Bedroom 3 | 2.60 × 2.90 m≈ 7.5 m² (81 sq ft)wardrobe 1.55 m |
| Master Bedroom | 2.95 × 4.10 m≈ 12.0 m² (130 sq ft) |
| Master Bath | 2.95 × 2.50 m≈ 7.3 m² (79 sq ft) |
| Walk-in Wardrobe | 1.75 × 3.60 m≈ 6.3 m² (68 sq ft) |
| Living + Dry Kitchen | 6.10 m |
Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 19 Oct 2026. How we measure.
