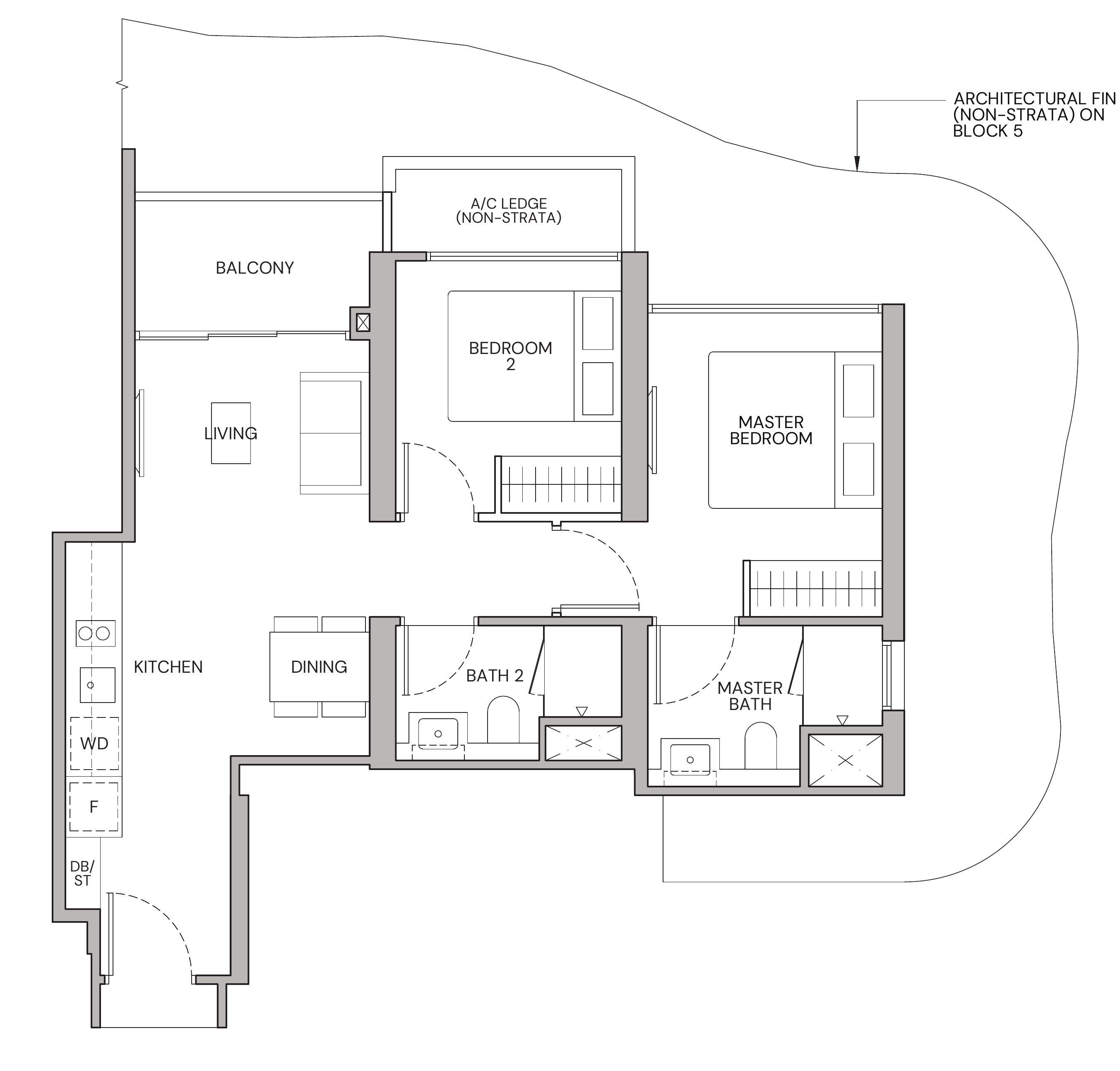

Zyon Grand BP1 floor plan
2-Bedroom Premium · 2 bedrooms · 2 bathrooms · 646 sq ft (60 m²) · 59 units
Plan © CDL, Mitsui Fudosan, from the sales brochure.
Room sizes
| Room | Clear size (width × depth) |
|---|---|
| Balcony | 2.70 × 1.50 m≈ 4.0 m² (43 sq ft) |
| Living | 2.70 × 3.20 m≈ 8.6 m² (92 sq ft)TV wall 2.10 m |
| Bedroom 2 | 2.60 × 2.90 m≈ 7.5 m² (81 sq ft)wardrobe 1.40 m |
| Bath 2 | 2.60 × 1.55 m≈ 4.0 m² (43 sq ft) |
| Master Bedroom | 2.70 × 3.50 m≈ 9.4 m² (101 sq ft)wardrobe 1.50 m |
| Master Bath | 2.70 × 1.85 m≈ 5.0 m² (54 sq ft) |
| Kitchen | 1.90 × 3.40 m≈ 6.4 m² (69 sq ft) |
| Foyer | 1.50 m |
| Dining | 1.60 mwall 1.60 m |
Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 19 Oct 2026. How we measure.
