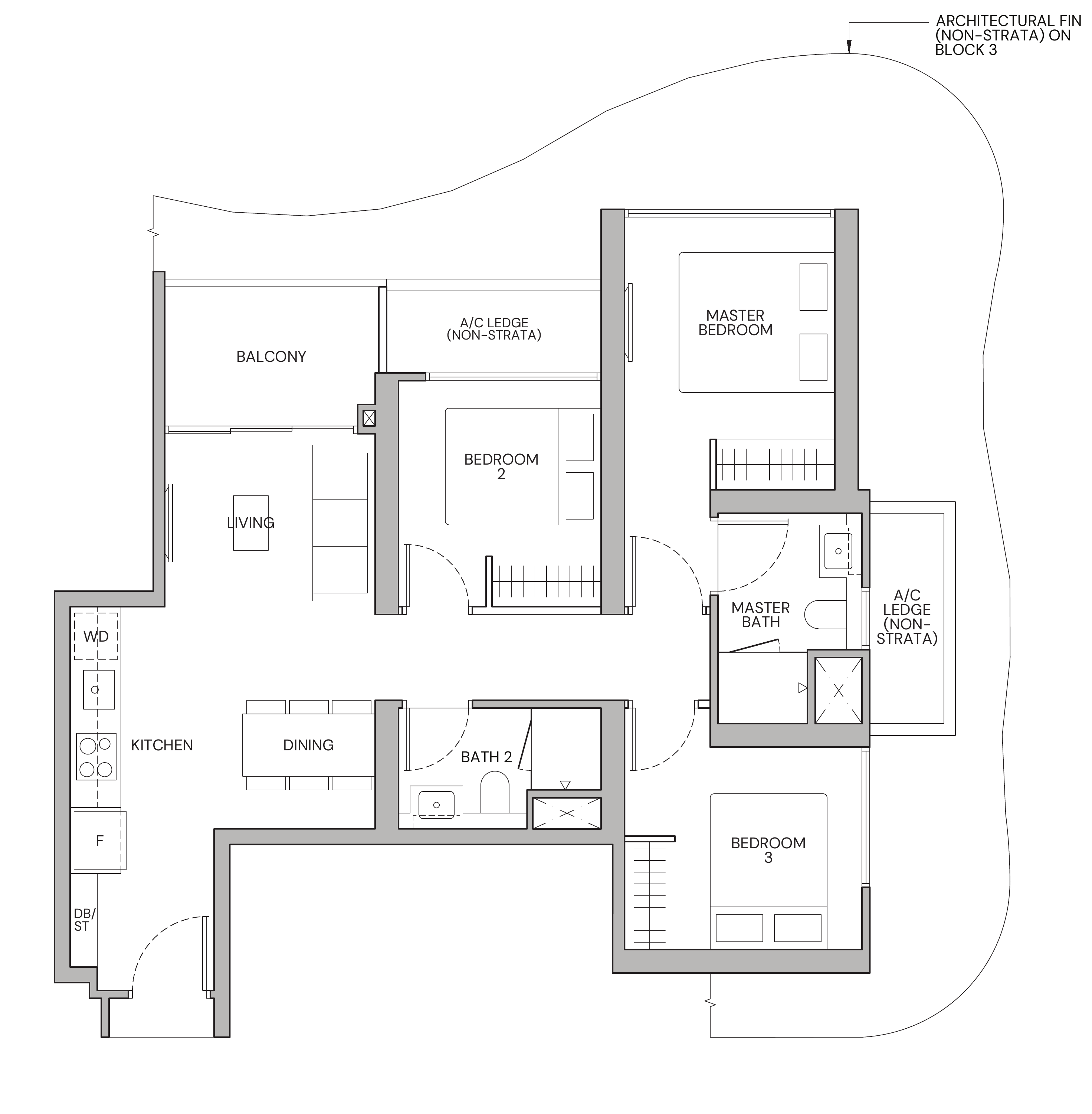

Zyon Grand C1 floor plan
3 bedrooms · 2 bathrooms · 818 sq ft (76 m²) · 59 units
Plan © CDL, Mitsui Fudosan, from the sales brochure.
Room sizes
| Room | Clear size (width × depth) |
|---|---|
| Balcony | 2.75 × 1.80 m≈ 4.9 m² (53 sq ft) |
| Living | 2.70 × 3.45 m≈ 9.3 m² (100 sq ft)TV wall 2.25 m |
| Bedroom 2 | 2.60 × 2.90 m≈ 7.5 m² (81 sq ft)wardrobe 1.45 m |
| Bath 2 | 2.60 × 1.55 m≈ 4.0 m² (43 sq ft) |
| Master Bedroom | 2.70 × 3.50 m≈ 9.4 m² (101 sq ft)wardrobe 1.60 m |
| Master Bath | 1.85 × 2.70 m≈ 5.0 m² (53 sq ft) |
| Bedroom 3 | 3.05 × 2.60 m≈ 7.9 m² (85 sq ft)wardrobe 1.45 m |
| Kitchen | 1.85 × 3.40 m≈ 6.3 m² (68 sq ft) |
| Foyer | 1.50 m |
| Dining | 1.65 mwall 2.05 m |
Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 19 Oct 2026. How we measure.
