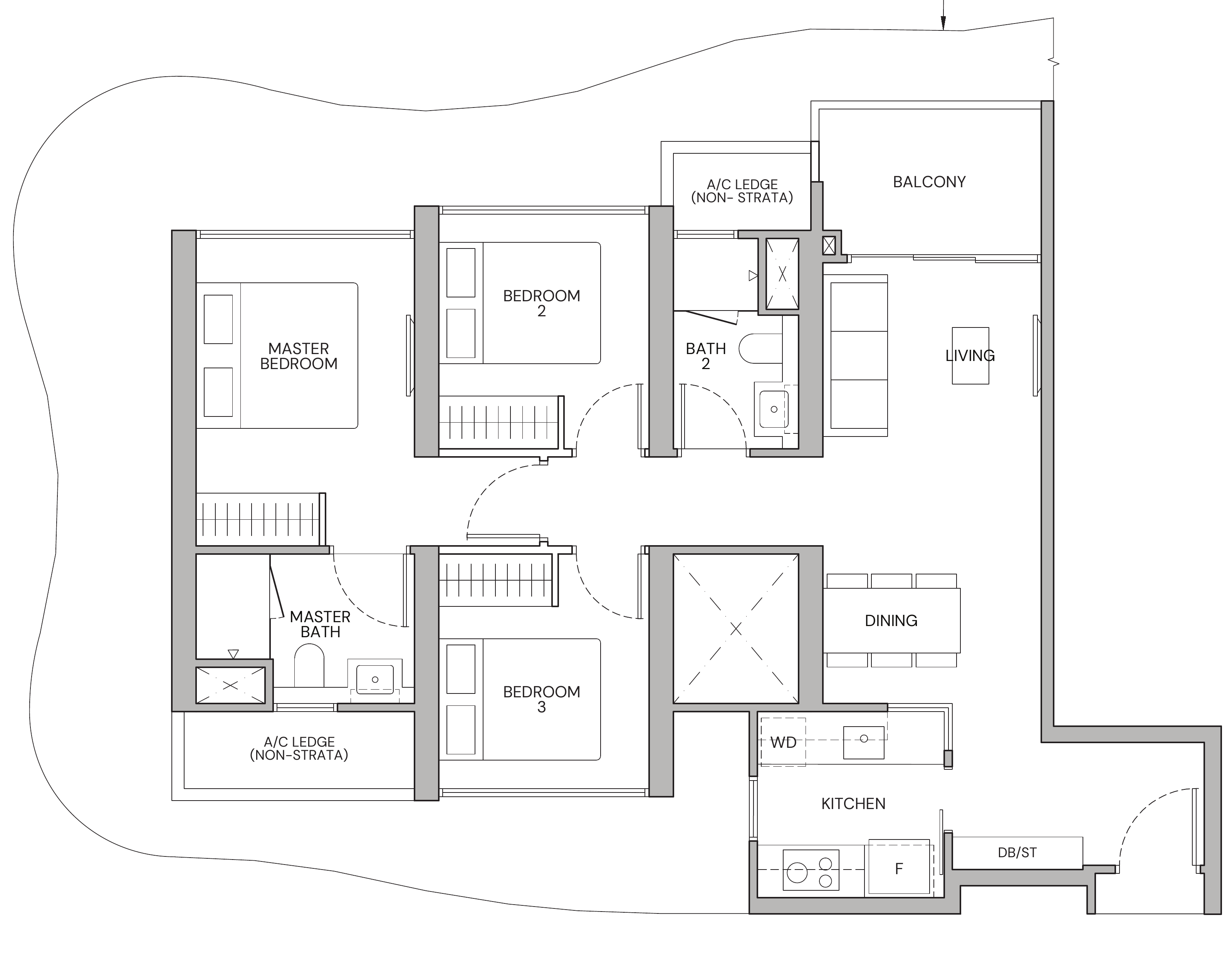

Zyon Grand CD1 floor plan
3-Bedroom Deluxe · 3 bedrooms · 2 bathrooms · 861 sq ft (80 m²) · 118 units
Plan © CDL, Mitsui Fudosan, from the sales brochure.
Room sizes
| Room | Clear size (width × depth) |
|---|---|
| Bedroom 2 | 2.60 × 2.90 m≈ 7.5 m² (81 sq ft)wardrobe 1.55 m |
| Bedroom 3 | 2.60 × 2.90 m≈ 7.5 m² (81 sq ft)wardrobe 1.45 m |
| Bath 2 | 1.55 × 2.60 m≈ 4.0 m² (43 sq ft) |
| Household Shelter | 1.55 × 1.85 m≈ 2.8 m² (31 sq ft) |
| Living | 2.70 × 3.50 m≈ 9.4 m² (101 sq ft)TV wall 2.40 m |
| Balcony | 2.75 × 1.80 m≈ 4.9 m² (53 sq ft) |
| Kitchen | 2.30 × 2.30 m≈ 5.3 m² (57 sq ft) |
| Master Bedroom | 2.70 × 3.80 m≈ 10.2 m² (110 sq ft)wardrobe 1.60 m |
| Master Bath | 2.70 × 1.85 m≈ 5.0 m² (54 sq ft) |
| Dining | 1.95 mwall 1.95 m |
| Foyer | 1.85 × 1.50 m≈ 2.8 m² (30 sq ft) |
Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 19 Oct 2026. How we measure.
