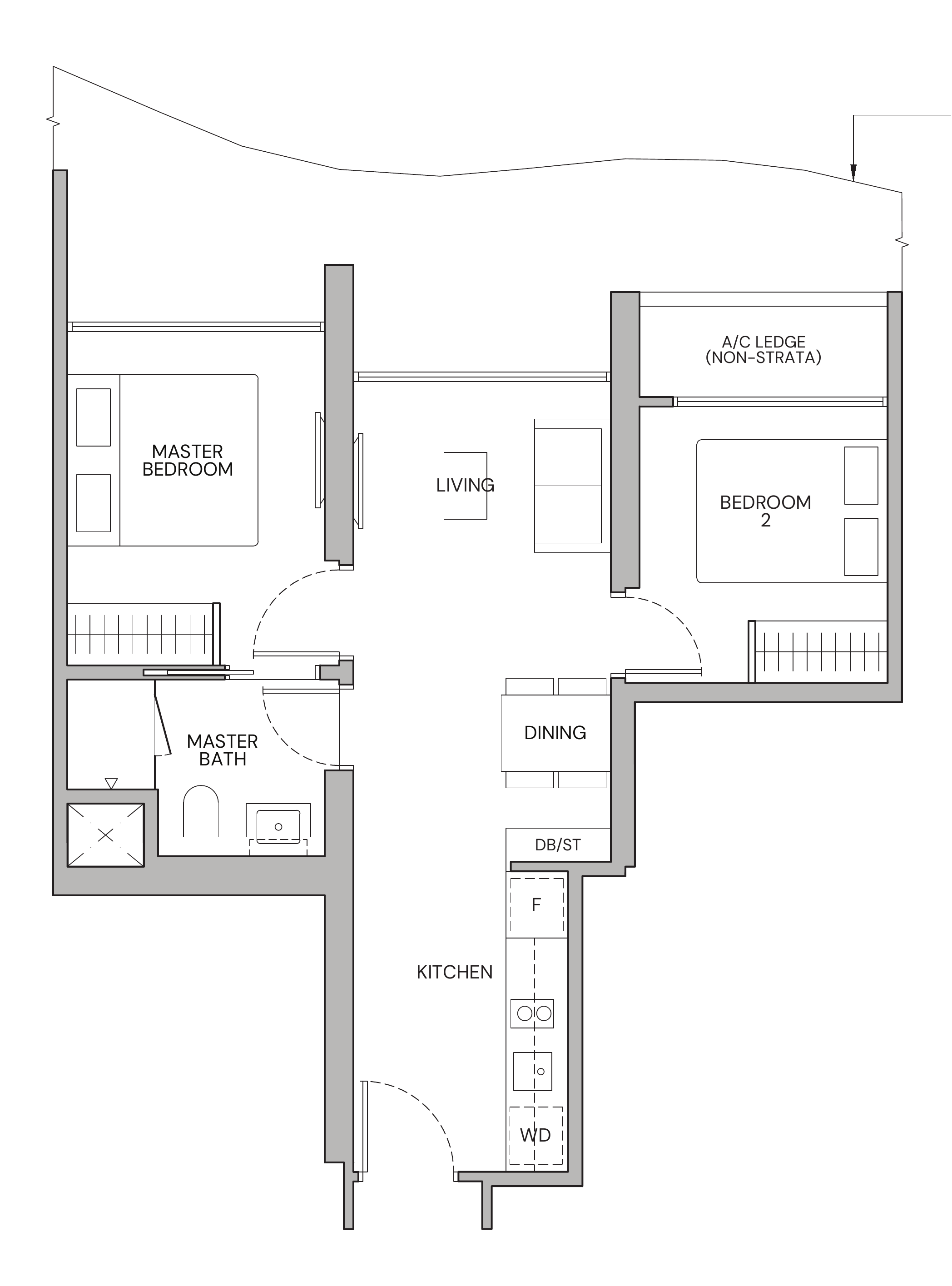

Zyon Grand B1 floor plan
2 bedrooms · 1 bathroom · 538 sq ft (50 m²) · 59 units
Plan © CDL, Mitsui Fudosan, from the sales brochure.
Room sizes
| Room | Clear size (width × depth) |
|---|---|
| Master Bedroom | 2.70 × 3.50 m≈ 9.4 m² (101 sq ft)wardrobe 1.60 m |
| Master Bath | 2.70 × 1.85 m≈ 5.0 m² (54 sq ft) |
| Bedroom 2 | 2.60 × 2.90 m≈ 7.5 m² (81 sq ft)wardrobe 1.45 m |
| Living | 2.70 × 3.10 m≈ 8.4 m² (90 sq ft)TV wall 1.90 m |
| Kitchen | 2.25 × 3.15 m≈ 7.1 m² (76 sq ft) |
| Dining | 2.00 mwall 1.55 m |
Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 19 Oct 2026. How we measure.
