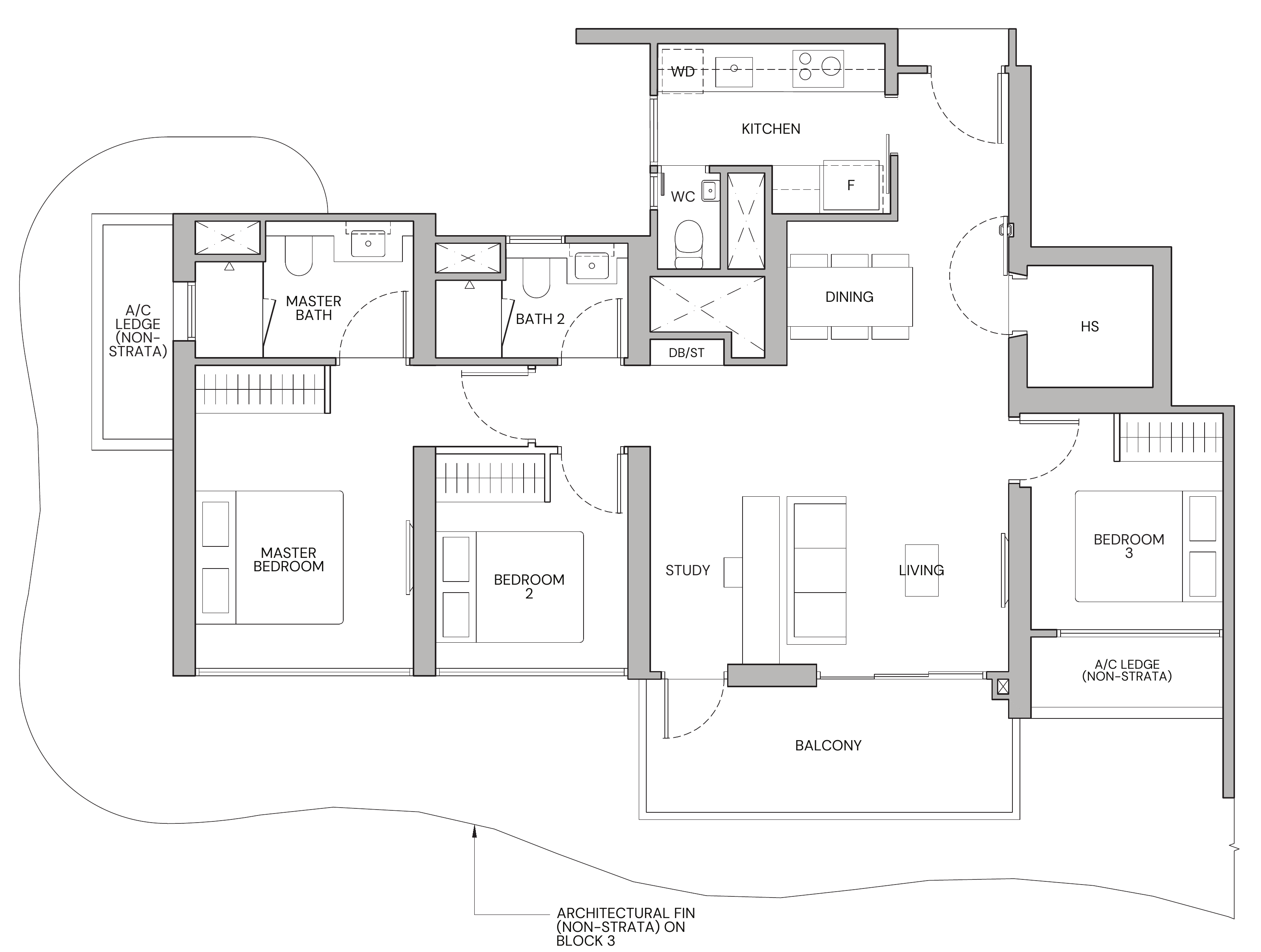

Zyon Grand CP2s floor plan
3-Bedroom Premium + Study · 3 bedrooms + study · 3 bathrooms · 1,076 sq ft (100 m²) · 58 units
Plan © CDL, Mitsui Fudosan, from the sales brochure.
Room sizes
| Room | Clear size (width × depth) |
|---|---|
| Master Bedroom | 2.95 × 4.10 m≈ 12.0 m² (130 sq ft)wardrobe 1.80 m |
| Master Bath | 2.95 × 1.85 m≈ 5.4 m² (58 sq ft) |
| Bath 2 | 2.60 × 1.55 m≈ 4.0 m² (43 sq ft) |
| Bedroom 2 | 2.60 × 2.90 m≈ 7.5 m² (81 sq ft)wardrobe 1.55 m |
| Kitchen | 3.05 × 2.30 m≈ 7.0 m² (76 sq ft) |
| WC | 0.85 × 1.40 m≈ 1.2 m² (13 sq ft) |
| Household Shelter | 1.70 × 1.65 m≈ 2.8 m² (30 sq ft) |
| Bedroom 3 | 2.60 × 2.90 m≈ 7.6 m² (82 sq ft)wardrobe 1.45 m |
| Balcony | 4.95 × 1.80 m≈ 8.9 m² (96 sq ft) |
| Dining | 1.95 mwall 1.95 m |
| Living | 3.00 × 4.15 m≈ 12.5 m² (134 sq ft)TV wall 2.55 m |
| Study | 1.85 m |
Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 18 Oct 2026. How we measure.
