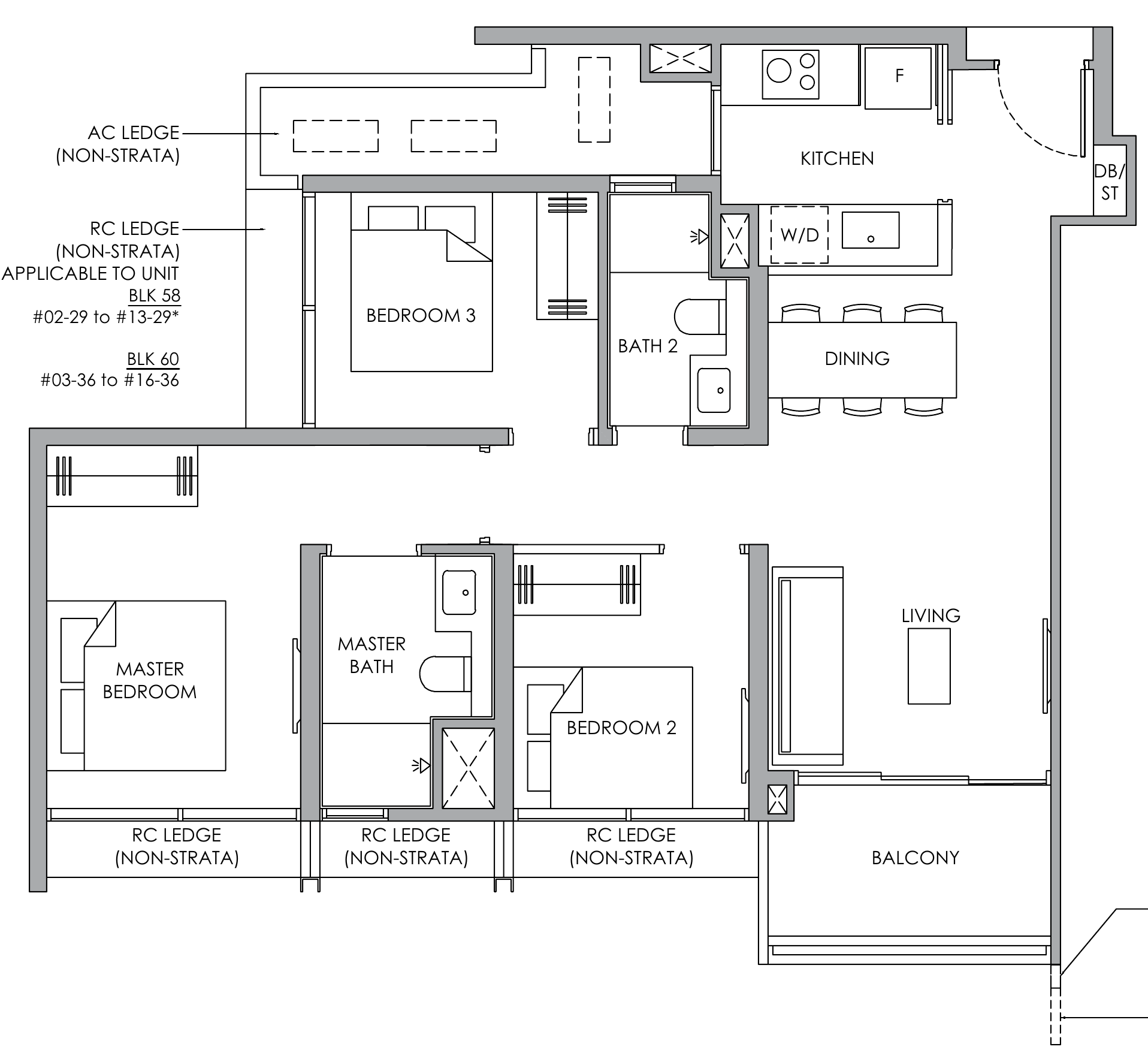

Narra Residences C1 floor plan
3-Bedroom Compact · 3 bedrooms · 2 bathrooms · 818 sq ft (76 m²) · 28 units
Plan © Santarli, Apex Asia, Soon Li Heng, Kay Lim, from the sales brochure.
Room sizes
| Room | Clear size (width × depth) |
|---|---|
| Master Bedroom | 2.70 × 3.85 m≈ 10.4 m² (112 sq ft)wardrobe 1.60 m |
| Master Bath | 1.85 × 2.70 m≈ 5.0 m² (54 sq ft) |
| Bedroom 2 | 2.50 × 2.70 m≈ 6.8 m² (73 sq ft)wardrobe 1.35 m |
| Bedroom 3 | 2.50 × 3.00 m≈ 7.5 m² (81 sq ft)wardrobe 1.35 m |
| Bath 2 | 1.50 × 2.50 m≈ 3.8 m² (40 sq ft) |
| Living | 3.00 × 3.45 m≈ 10.4 m² (112 sq ft)TV wall 2.40 m |
| Balcony | 3.00 × 1.60 m≈ 4.8 m² (52 sq ft) |
| Dining | 1.80 mwall 1.80 m |
| Kitchen | 2.45 × 2.45 m≈ 6.0 m² (65 sq ft) |
| Foyer | 1.50 × 1.55 m≈ 2.3 m² (25 sq ft) |
Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 22 Oct 2026.
