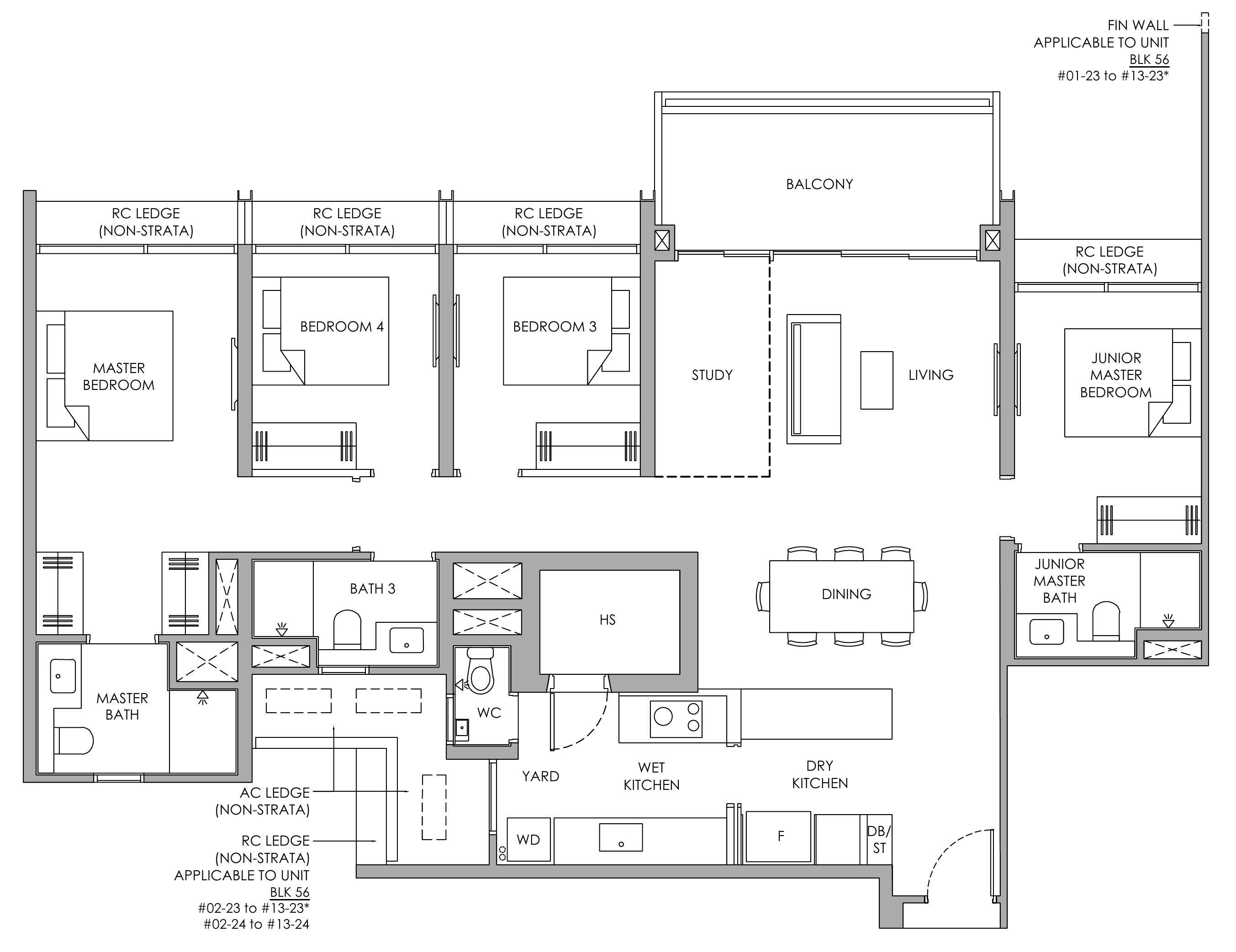

Narra Residences D2P floor plan
4-Bedroom Premium · 4 bedrooms + study · 4 bathrooms · 1,378 sq ft (128 m²) · 26 units
Plan © Santarli, Apex Asia, Soon Li Heng, Kay Lim, from the sales brochure.
Room sizes
| Room | Clear size (width × depth) |
|---|---|
| Master Bedroom | 2.80 × 4.15 m≈ 11.7 m² (126 sq ft)wardrobe 1.15 mwardrobe 2 1.15 m |
| Master Bath | 2.80 × 1.85 m≈ 5.2 m² (56 sq ft) |
| Bedroom 4 | 2.60 × 3.00 m≈ 7.8 m² (84 sq ft)wardrobe 1.45 m |
| Bath 3 | 2.60 × 1.50 m≈ 3.9 m² (42 sq ft) |
| Bedroom 3 | 2.60 × 3.00 m≈ 7.8 m² (84 sq ft)wardrobe 1.45 m |
| Junior Master Bedroom | 2.60 × 3.50 m≈ 9.1 m² (98 sq ft)wardrobe 1.45 m |
| Junior Master Bath | 2.60 × 1.50 m≈ 3.9 m² (42 sq ft) |
| WC | 0.80 × 1.40 m≈ 1.1 m² (12 sq ft) |
| Household Shelter | 1.95 × 1.45 m≈ 2.8 m² (31 sq ft) |
| Balcony | 4.60 × 1.90 m≈ 8.8 m² (94 sq ft) |
| Study | 1.60 × 3.05 m≈ 4.9 m² (53 sq ft) |
| Living | 3.20 × 3.05 m≈ 9.8 m² (106 sq ft)TV wall 3.05 m |
| Dining | 2.90 mwall 2.10 m |
| Yard + Kitchen | 3.20 m |
| Kitchen | 2.45 m |
| Yard | 1.45 m |
| Dry Kitchen | 1.85 m |
| Foyer | 1.50 × 1.15 m≈ 1.7 m² (18 sq ft) |
Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 22 Oct 2026.
