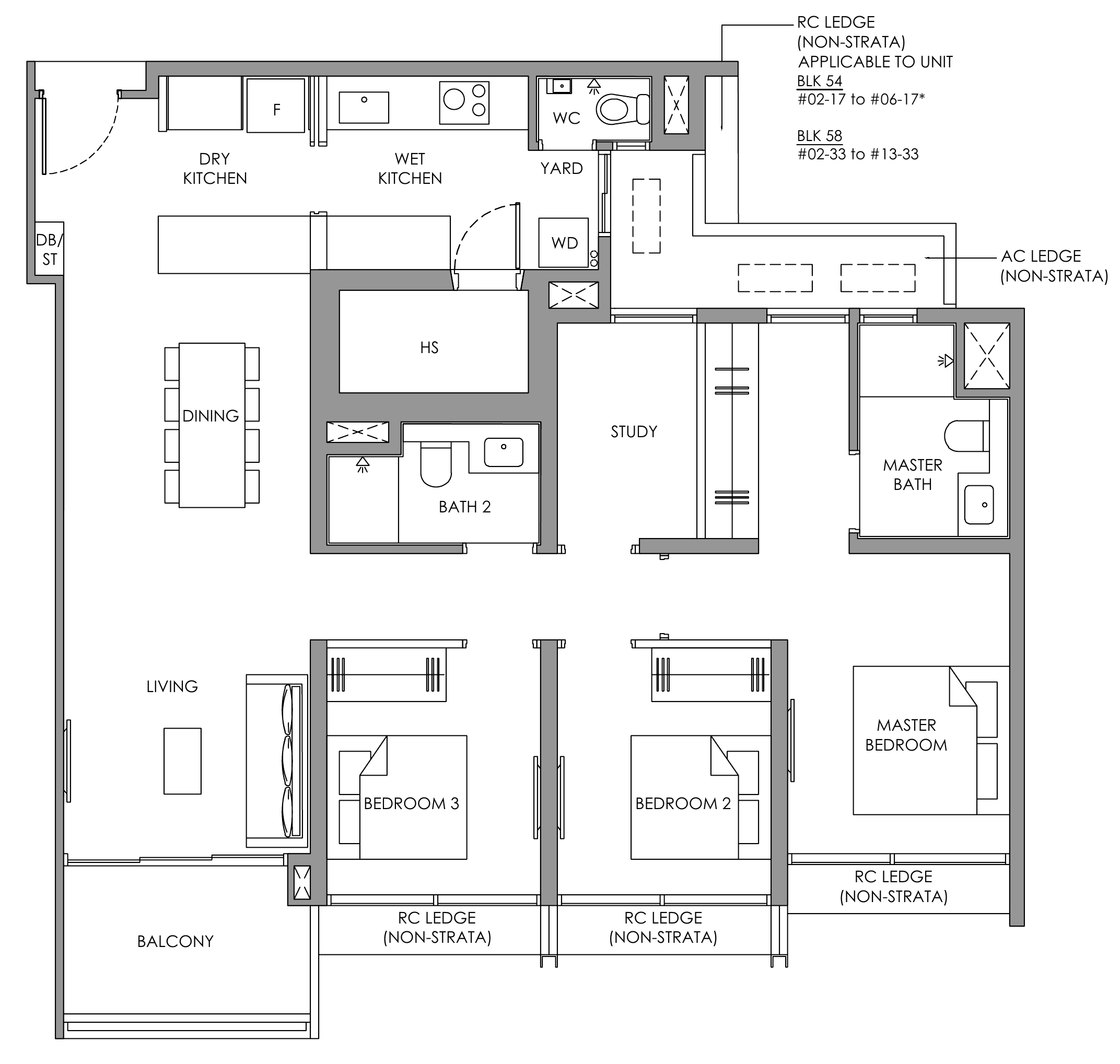

Narra Residences C9S floor plan
3-Bedroom with Study · 3 bedrooms + study · 3 bathrooms · 1,152 sq ft (107 m²) · 19 units
Plan © Santarli, Apex Asia, Soon Li Heng, Kay Lim, from the sales brochure.
Room sizes
| Room | Clear size (width × depth) |
|---|---|
| Master Bedroom | 2.70 × 3.65 m≈ 9.9 m² (106 sq ft)wardrobe 2.65 m |
| Bedroom 2 | 2.60 × 3.00 m≈ 7.8 m² (84 sq ft)wardrobe 1.45 m |
| Bedroom 3 | 2.60 × 3.00 m≈ 7.8 m² (84 sq ft)wardrobe 1.45 m |
| Bath 2 | 2.60 × 1.50 m≈ 3.9 m² (42 sq ft) |
| Household Shelter | 2.30 × 1.25 m≈ 2.9 m² (31 sq ft) |
| Study | 1.70 × 2.65 m≈ 4.5 m² (48 sq ft) |
| Master Bath | 1.85 × 2.65 m≈ 4.9 m² (52 sq ft) |
| Living | 3.00 × 3.75 m≈ 11.2 m² (121 sq ft)TV wall 2.70 m |
| Balcony | 3.00 × 1.80 m≈ 5.4 m² (58 sq ft) |
| WC | 1.40 × 0.80 m≈ 1.1 m² (12 sq ft) |
| Yard | 1.45 m |
| Dining | 3.40 mwall 3.40 m |
| Yard + Kitchen | 3.30 m |
| Kitchen | 2.35 m |
| Dry Kitchen | 1.85 × 2.40 m≈ 4.5 m² (48 sq ft) |
| Foyer | 1.50 × 1.50 m≈ 2.2 m² (24 sq ft) |
Clear sizes, inner wall face to inner wall face, to the nearest 5 cm, measured off the developer’s brochure plan at its printed scale. A guide only: check with the developer. Measured 22 Oct 2026.
